MITPC100 Series Solar Water Pump Inverter (1.5-55KW)
· Support single phase/three phase 220V, and three phase 380V solar water pump inverter, power from 1.5KW to 55KW. · Simply connect the photovoltaic panel to the solar water pump inverter, and the PV pump can be automatically started after power-on.
Category:INVERTER
Category:ON Grid inverter
Contact Us
-
Product Description
-
Parameter
-
Features:
· Support single phase/three phase 220V, and three phase 380V solar water pump inverter, power from 1.5KW to 55KW.

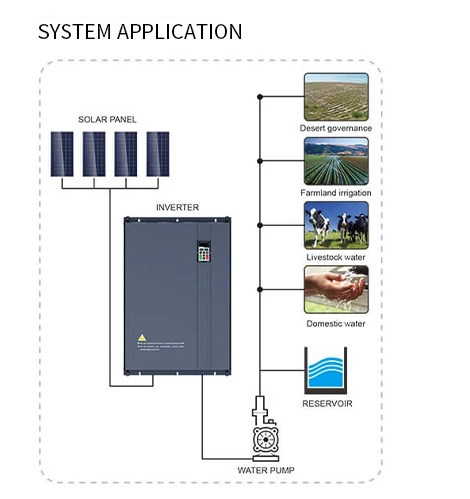

· Simply connect the photovoltaic panel to the solar water pump inverter, and the PV pump can be automatically started after power-on.
· It has protection functions such as PV over-voltage protection, over-temperature automatic protect, etc..
· Ensure solar power tracking efficiency can reach 99%.
· All series of products can realize automatic switching of PV DC input and grid AC input, which can meet 24 hours of no care work.
· Supports IP20 grade cabinet solutions.
-
Functionality Description
MITPC100
TECHNICAL CONTROL PERFORMANCE
Control mode
SVC, V/F
Motor type
Asynchronous motro
Speed control accuracy
±0.5% (SVC)
Starting torque
0.25Hz/150% (SVC)
Torque boost
Automatic torque boost; manual torque boost 0.1%~30.0%
OPERATIONAL CONTROL PERFORMANCE
Frequency command
Digital setting, analog voltage setting, analog current setting, pulse setting, serial port setting, keyboard potentiometer setting. Can be switched in many ways.
Auxiliary frequency command
Eleven kinds of auxiliary frequency commands, which can flexibly realize auxiliary frequency fine-tuning and frequency synthesis.
Operation command
Operation command operator panel setting / Control terminal setting / Serial communication port setting / Can be switched in a variety of ways.
Automatic voltage adjustment function
When the grid voltage changes, it can automatically keep the output voltage constant.
Speed tracking restart function
Achieve shock-free and smooth start to the rotating motor
EFFICIENCY
MPPT tracking efficiency
99.5%max (PV mode)
PROTECTION
Loss phase protection
Input / output loss phase protection
Instantaneous overcurrent protection
Stop at ≥250% of rated output current
Over-voltage protection
Stop at ≥800V of main circuit DC voltage
Low-voltage protection
The main circuit DC voltage will stop when undervoltage (different depending on the model)
Over-temperature protection
Protection will be triggered when the inverter bridge over-temperature
Overload protection
Over-load ≥150% 60s,inverter will shutd own
Over current protection
If rated current over 2.5 times, inverter will shutdown for protection
Brake protection
Braking unit overload protection, braking resistor short circuit protection
Short circuit protection
Output phase short circuit protection
CONTROL SINGLE
Communication interface
RS-485 interface
Input terminal X
8 X terminals, more than fifty kinds of input function options. The X8 terminal supports high-speed pulse signal input.
Output terminal
1 high-speed pulse output terminal (open-collector type is optional),
supports 0~100kHz square wave signal output; 2 AO terminals; 2 relay output terminals.Control voltage source output
DC24V, 100mA
Analog signal input
AI1: 0V~+10V; AI2: 0~+10V / 0~20mA, the main board dial switch selection. AI3: -10V~+10V;
Analog signal output
2 ways, 0~+10V / 0~20mA output programmable, selected by the main board dial switch.
Open-collector output
2 ways, multiple operating states are optional; the maximum output current is 50mA.
Programmable rellay output
2 ways, multiple states are available; contact capacity: 250VAC/3A or 30VDC/1A.
DISPLAY
Five-digit display
31 state parameters such as setting frequency, output frequency, output voltage, output current, motor speed, output torque, switch value terminal, etc., programming menu parameters and
25 fault codes, etc.Indicator light (LED)
Parameter unit, setting direction, RUN/STOP status, control mode
ENVIROMENT
Use occasions
The room is free from direct sunlight, dust, corrosive gas, combustible gas, oil mist, water vapor, dripping water or salt, etc
Altitude
1000 meters below sea level (When the altitude exceeds 1000m, derate at a rate of 1% per 100m height)
Ambient temperature
-10℃ ~+40℃ , it is not recommended to tun above 50℃
(when the ambient temperature exceeds 40℃ , derate at a rate of 3% per 1℃ derating)Humidity
5%~95%RH, no condensation
Vibration
Less than 5.9m/s2 (0.6g)
Storage temperature
-20℃ ~ +60℃ , air temperature change is less than 1℃ /min
Protection class
IP20
STRUCTURE
Cooling method
Air cooling
Installation type
Wall-mounted
