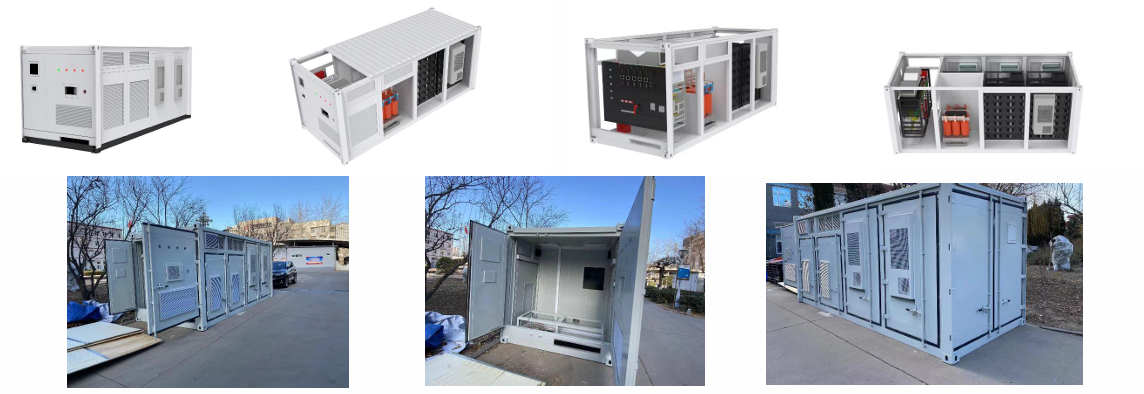

Containerized Energy StorageSystem

Weusestandardbatterymodules,PCSmodules,BMS,EMSandother systemstoformstandardcontainerstobuildlarge-scale grid-sideenergy storageprojects. Thestandardized20feet container systemcanbeconfiguredwith1MWH500KWenergy storage system. The standardizedand prefabricateddesign reducesuser customization timeandconstructioncosts, andreducessafetyhazardscausedbylocal installationdifferencesandmanagement risks. Itmeetstheapplicationneedsof regional powergridpeak regulation, frequencyregulation,voltageregulation,emergencyresponse, newenergyconsumption,etc.,and ensuresthenormaloperationof the powersystem
PCS

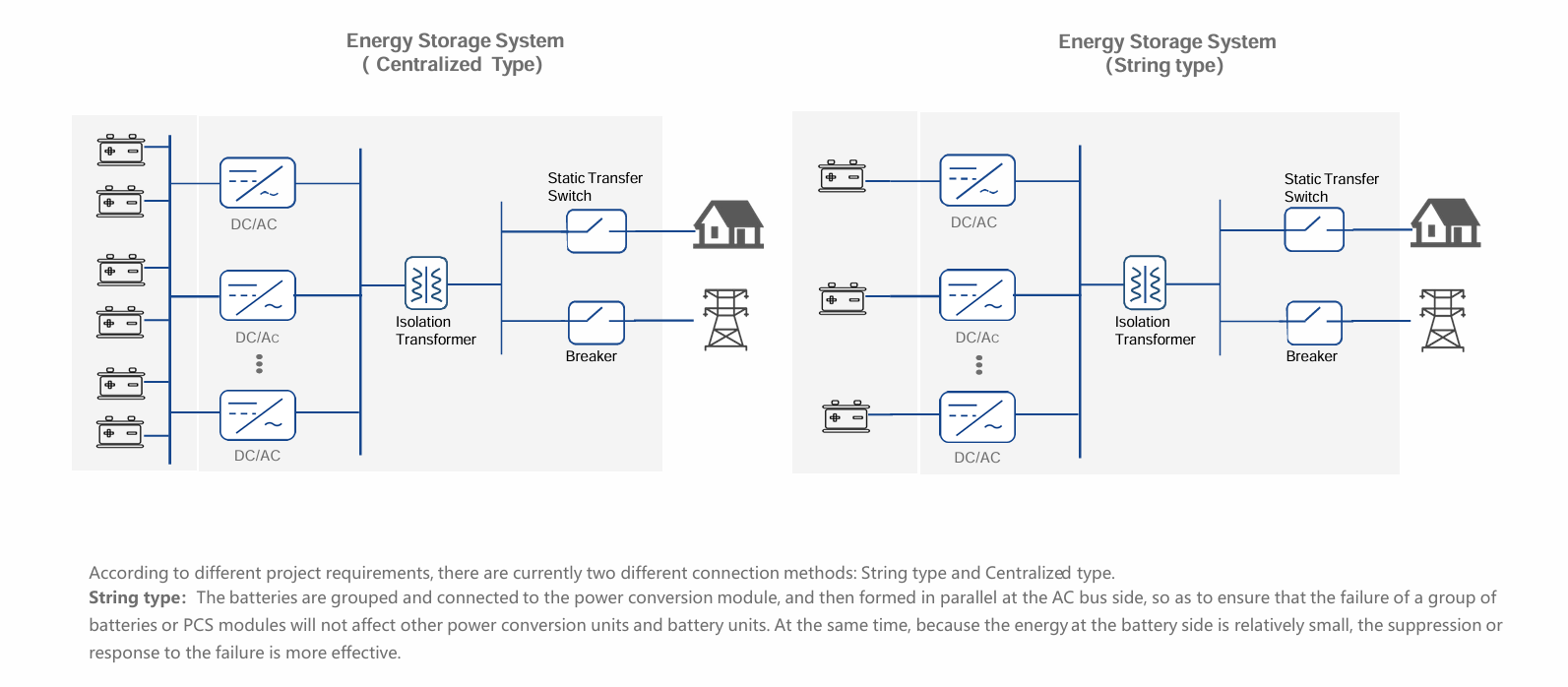

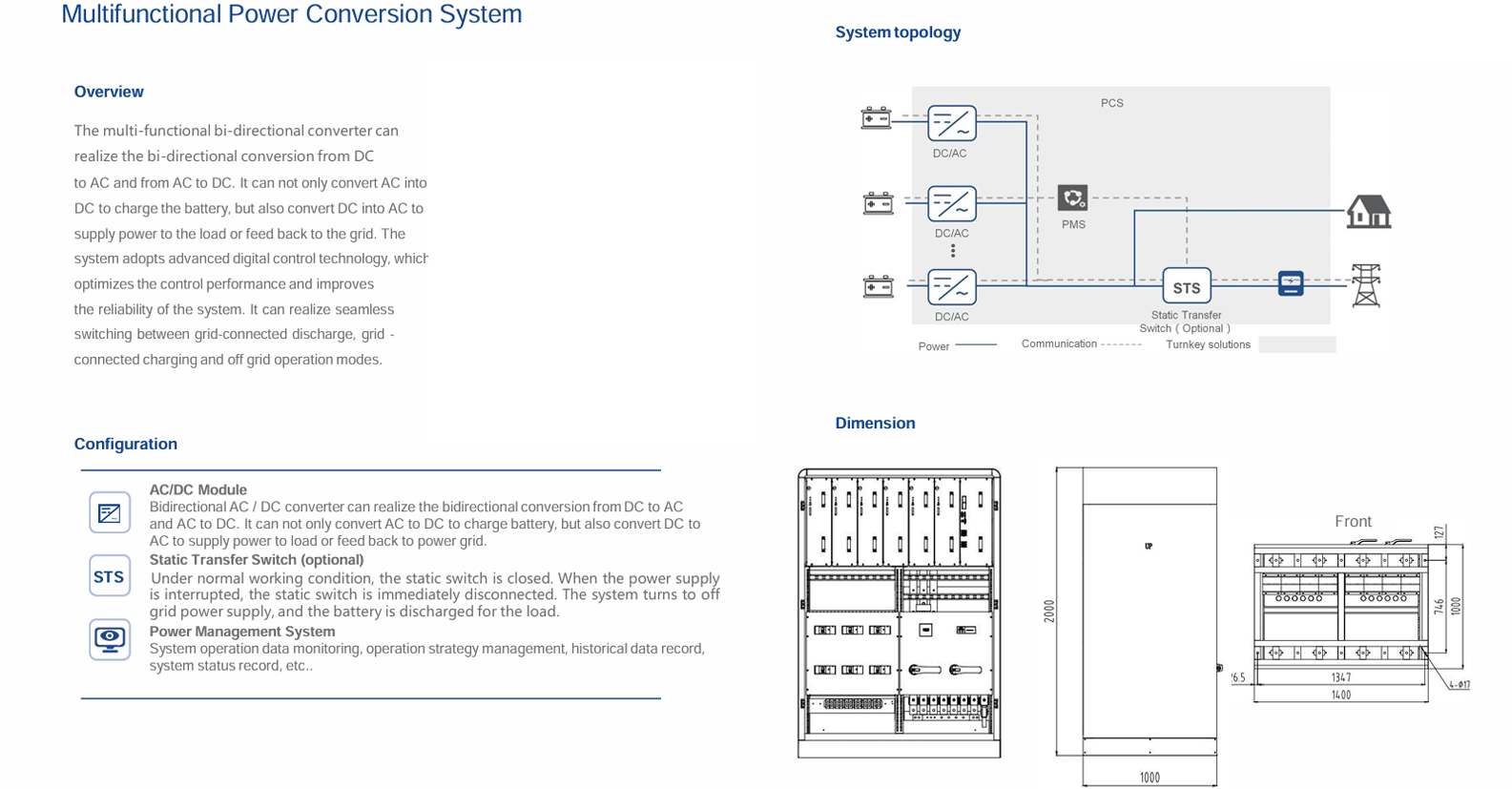

Bidirectional AC / DC converter can realize the bidirectional conversion from DC to AC and AC to DC. It can not only convert AC to DC to charge battery, but also convert DC to AC to supply power to load or feed back to power grid.

BatterySystem

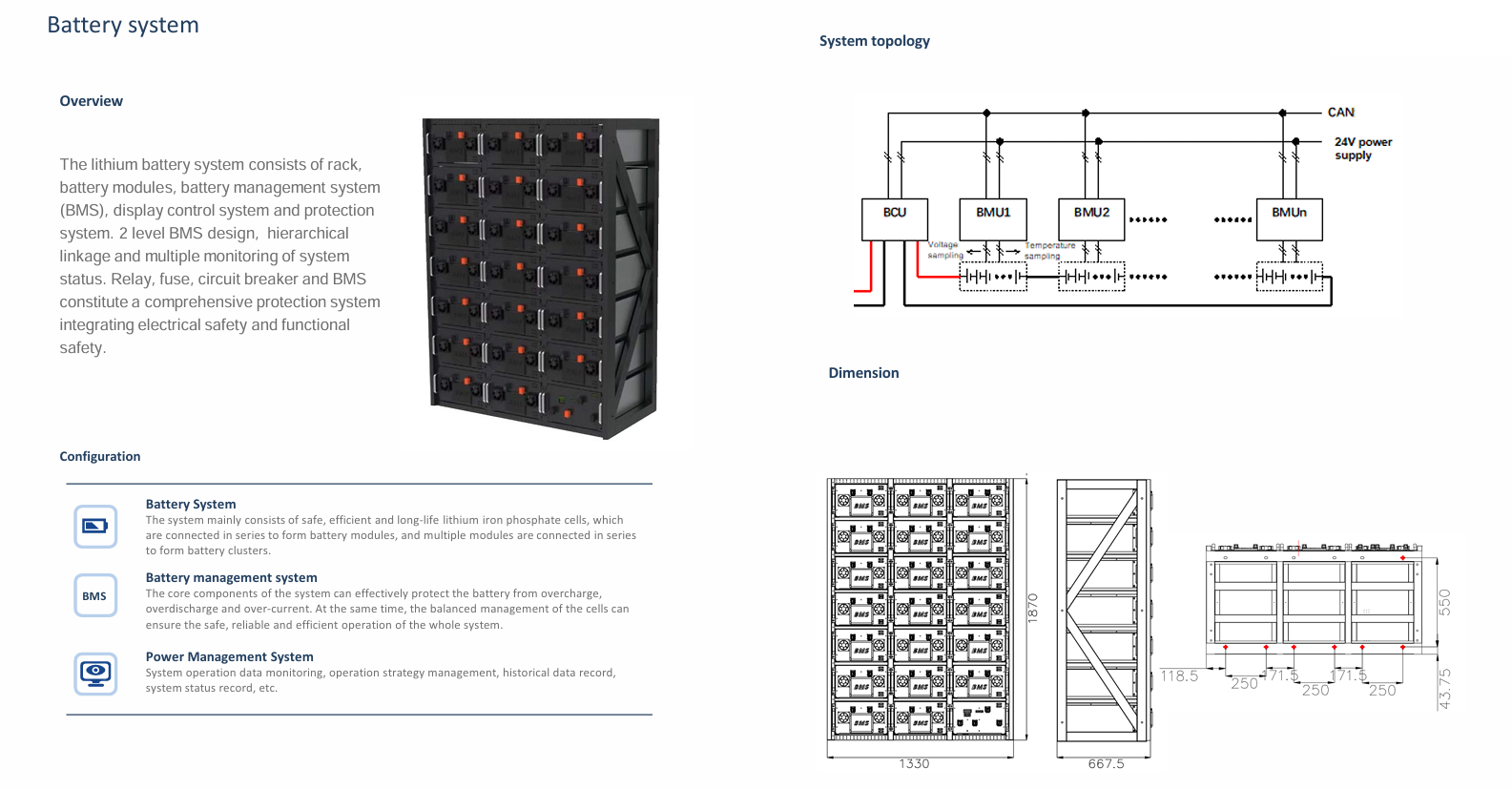

The system mainly consists of safe, efficient and long-life lithium iron phosphate cells, which are connected in series to form battery modules, and multiple modules are connected in series to form battery clusters.
AirConditioning

Air Conditioning (HVAC) system is configured to maintained an optimal temperature to maximize energy system operational life andefficiency.

Battery management system

The core components of the system can effectively protect the battery from overcharge, overdischarge and over-current. At the same time, the balanced management of the cells can ensure the safe, reliable and efficient operation of the wholesystem

Power Management System

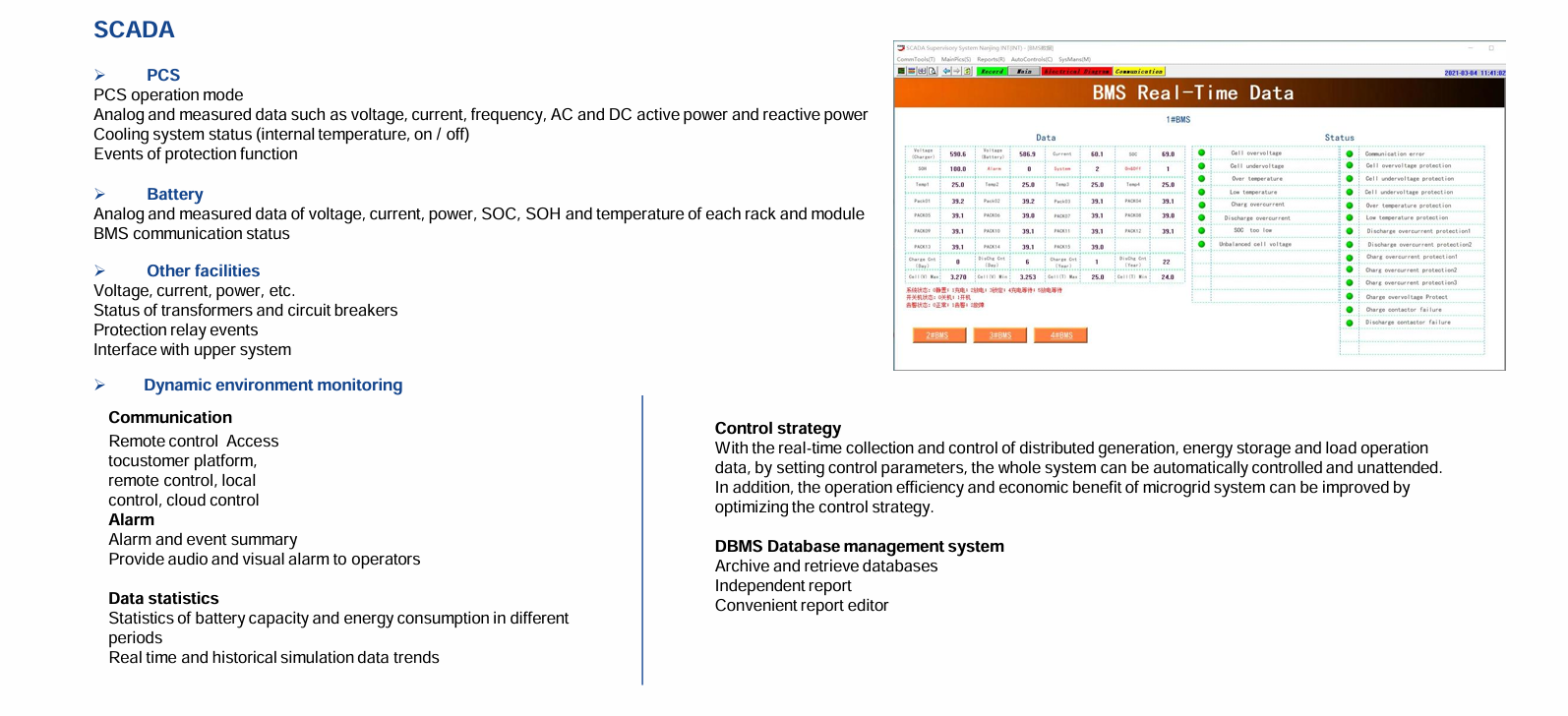

System operation data monitoring, operation strategy management, historical data record, system status record, etc

Enclosure

Protection degreeIP54.

Category:MITSCN Solar ESS Solution

Product Description
Parameter

500kW/1075.2kWh

The system selects a mature technology integrated container lithium battery energy storage program,and develops a lithium iron phosphate battery container energy storage system 500KW/1075.2KWH.

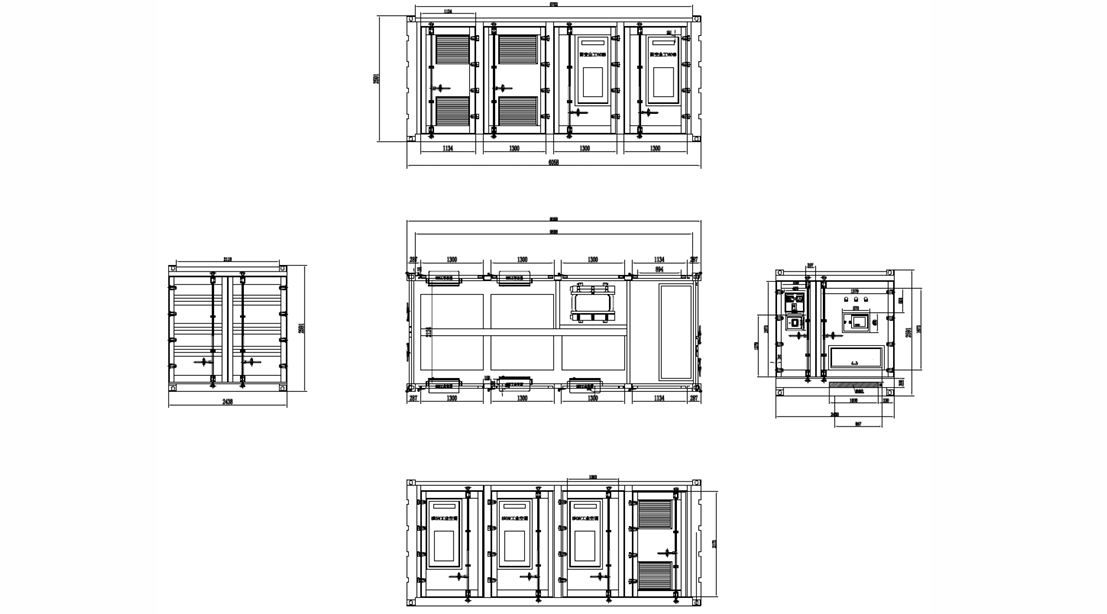

Consisting of 5 sets Battery Cabinet , 1 set 500KW PCS energy storage converter and 1 isolation transformer are integrated into 1X20ft container.
