MITPC35KT Off grid, Three Phase
MITPC35KT is a three pahse power frequency photovoltaic inverter, combine with Dual CPU single chip intelligent control technoloty, microcomputer control and humanized design together, take full account of the needs of end customers. This product provide Three-stage charging function with battery type selection ( optional). And can realize the connection of generator and external battery.
Category:INVERTER
Category:OFF Grid inverter
Contact Us
-
Product Description
-
Parameter
-
Product features:
· Dual CPU single chip intelligent control technoloty, microcomputer control,humanized design.
· Output high quality Pure Sine Wave AC power, with strong Load capacity.
· With perfect protection fuction, greatly improve product reliability.
· Adopt CPU centralized control, and SMT technology.
· Stable operation, low distortion, no noise, no pollution. Strong resistance to load impact, long life.
· LCD/LED Panel Manu display operation status.
· Three-stage charging function with battery type selection ( optional).
· Stroage Battery overvoltage, shortvoltage protection. Can resume working automatically.
· Utility electricity automatic conversion . ( optional )
· High conversion efficiency, high instance power, low load loss.

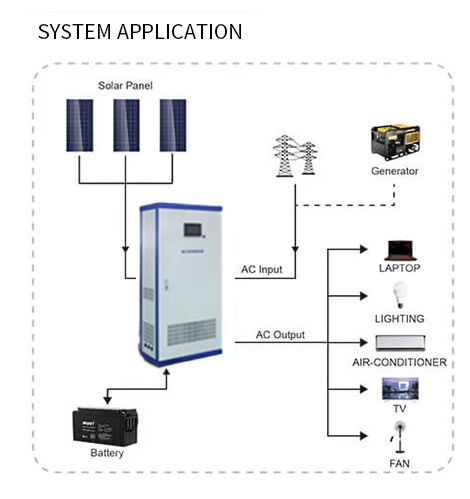

· Can realize the connection of generator and external battery.
-
Model
MITPC35KT
RATED POWER
35000W
PV INPUT
Minimum DC Input Power
384VDC
Max Discharge Current
175A
Input Utility Electricity Voltage AC
380V
Intergrated AC Charger Current ( optional)
10A
MPPT voltage range(V)
Maximum input current(A)
AC Output
Output Current
65A * 3
Rated Voltage
380VAC ±5%
Frequency
50Hz / 60Hz
Phase number
Three Phase
Output Wave Form
Pure Sine Wave
Current THD
＜ 3%
Switching Time
20ms ~ 1s
General Parameters
Invert efficiency
≥ 85%
Standby Power Consumption
＜ 20W
Noise
≤ 55dB
Peak Overload Capacity
when >120%, 10s protection; when >150, 5ms protection
Display
LCD/ LED
Operation temperature Range
Air Flow, -10 ℃ ~ 60 ℃
Relative humidity
≤90% RH , no condensation
Environment
No Corrosion Gas, Flammable Gas, Gas Fumes and Dust Etc.
Altitude
< 1000m
Size
600x800x1500mm
Weight
345kgs
